Graph Theory Lessons

A spanning tree for a connected graph G is a connected subgraph of G that is a tree (i.e. has no circuits) and contains all the vertices of G. If G is a tree then it has only one spanning tree (G itself), otherwise there will be more than one spanning tree. We will first illustrate a depth first approach to getting a spanning tree. Get the grid sq_5,4. Now click Find then Spanning Tree and Depth First. You will see the depth first spanning. You should get a picture like figure 32.

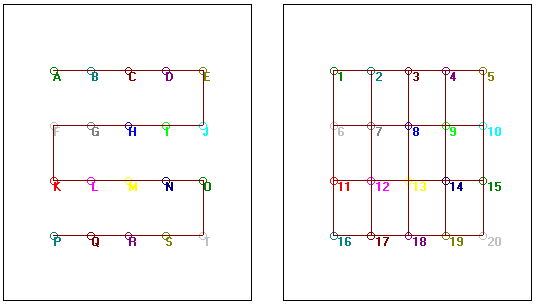

Fig. 32, A depth first spanning tree for sq5,4.

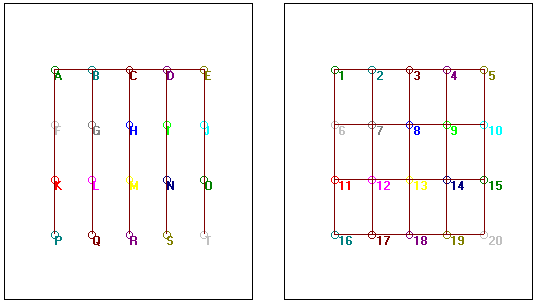

Fig. 33, A breadth first spanning tree for sq5,4.

1. For the Herschel graph, draw a depth first and a breadth first spanning tree and then two other spanning trees.
2. Find a graph on five vertices that is not a tree but such that all of its spanning trees are isomorphic.
3. Which graph is isomorphic to the breadth first spanning tree of the complete graph K_n?

Answers
